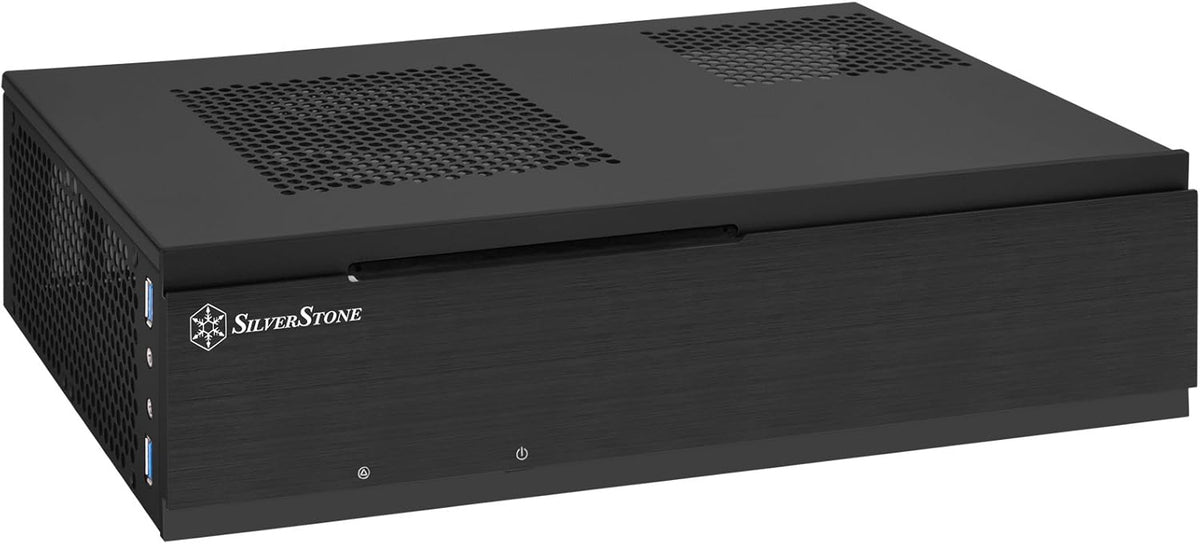

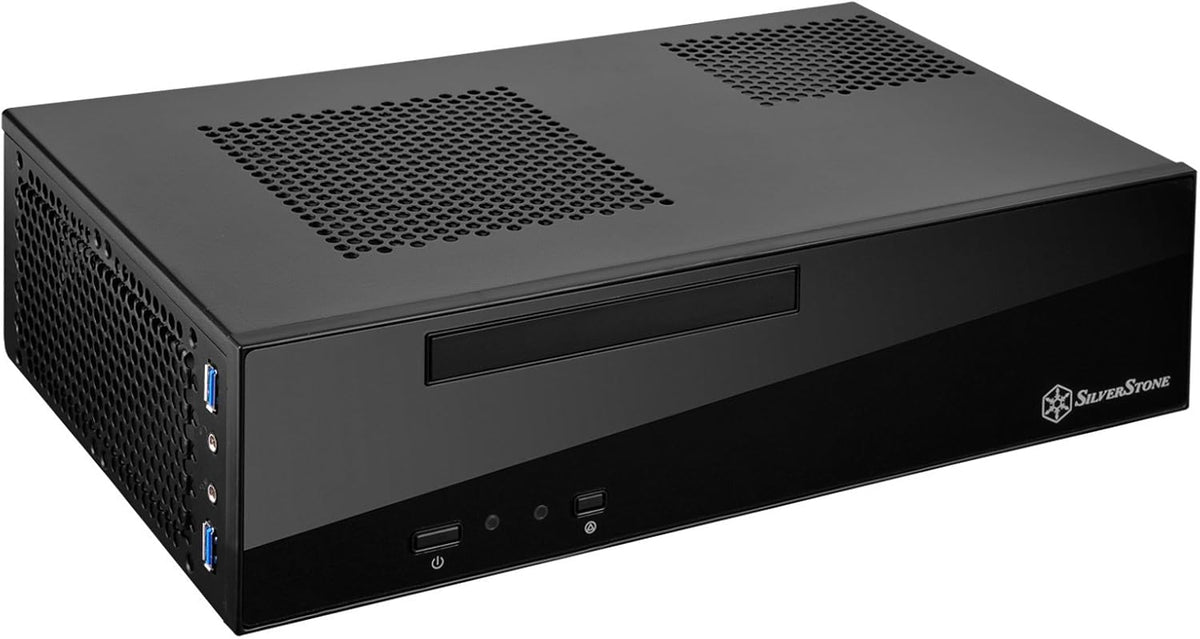

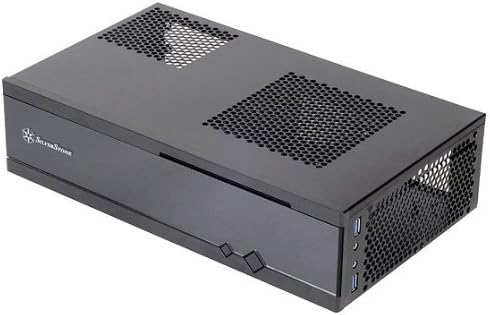

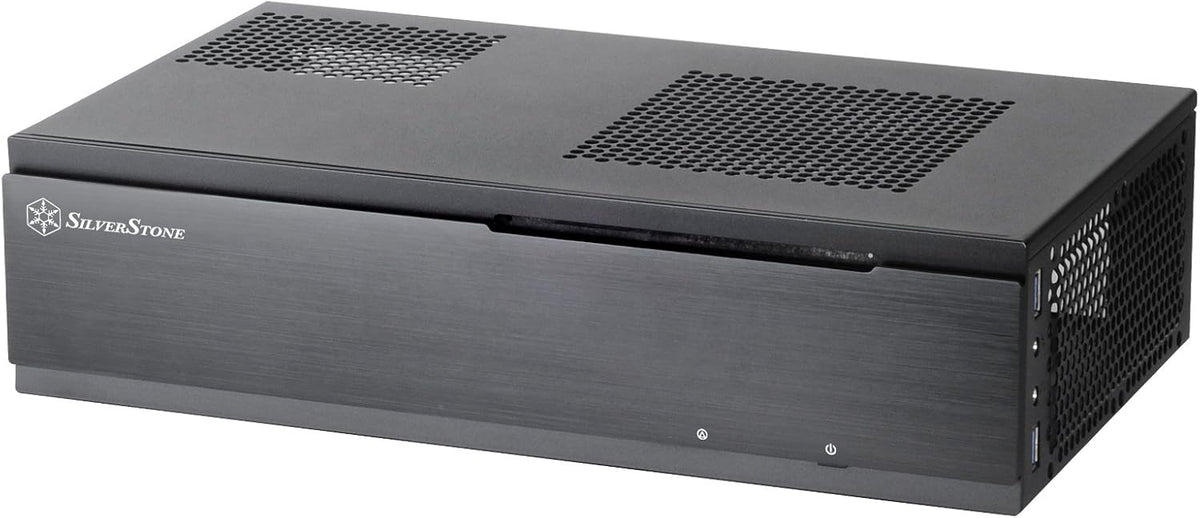

Steel Mini-ITX Media Center Case B16616
Steel Mini-ITX Media Center Case B16616
Super small at only 7 liters
Support up to two 80mm fans
Multipurpose 4-in-1 bracket
Support Mini-ITX motherboard and SFX power supply
Support four 2.5-Inch HDD/SSD
Continuing with the popular slim form factor HTPC, the Milo ML05 HTPC case is the smallest in the Milo series to-date and yet still able to fit modern day components. Although measuring only 7 liters in size (half the size of Micro-ATX based ML03), it can accommodate Mini-ITX motherboard, SFX power supply and install up to four 2.5-Inch hard drives. An innovative multipurpose 4-in-1 bracket also allows installation of a slim optical drive, a 3.5-Inch hard drive, two 2.5-Inch drives, or a 120mm fan depending on user's requirement. Complementing a superbly compact design is a beautiful acrylic front panel that seamlessly integrates into home theater environments, making ML05 the best petite HTPC case on the market.
| ML03B | ML04B | ML05B | ML06B | ML06B-E | ML09B | |
|---|---|---|---|---|---|---|
| Height | 4.13' | 4.13' | 3.9' | 3.9' | 3.9' | 3.9' |
| Width | 17.32' | 17.32' | 13.78' | 13.78' | 13.78' | 13.78' |
| Depth | 13.39' | 13.78' | 8.03' | 8.07' | 8.07' | 8.07' |
| Motherboard Limit | mATX | mATX | ITX | ITX | ITX | ITX |
| CPU Cooler Limit | 70mm | 70mm | 37mm with 3.5' drive or 120mm fan, 47mm with optical drive, 70mm with nothing above | 37mm with 3.5' drive or 120mm fan, 47mm with optical drive, 70mm with nothing above | 37mm with 3.5' drive, 47mm with optical drive or included slim fan, 70mm with nothing above | 37mm with 3.5' drive, 47mm with optical drive or included slim fan, 70mm with nothing above |
| PSU Limit | ATX (140mm deep) | ATX (140mm deep) | SFX (100mm deep) | SFX (100mm deep) | SFX (100mm deep) | SFX (100mm deep) |
| Expansion Card Limit | Four low-profile | Four low-profile | One low-profile | One low-profile | One dual-slot low-profile (6.9' long) | One dual-slot low-profile (6.9' long) |
| Fan Slots | 4 x 80mm | 4 x 80mm | 2 x 80mm, 1 x 120mm | 2 x 80mm, 1 x 120mm | 2 x 80mm, 1 x 120mm | 2 x 80mm, 1 x 120mm |
| Drive Bays | 1 x 2.5', 2 x 3.5' / 2.5', 1 x 5.25' / 3.5' / 2 x 2.5' | 1 x 2.5', 2 x 3.5' / 2.5', 1 x 5.25' / 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm slot-loading optical or 1 x 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm slot-loading optical or 1 x 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm slot-loading optical or 1 x 3.5' / 2 x 2.5' | 4 x 2.5', 1 x 12.7mm tray-loading optical or 1 x 3.5' / 2 x 2.5' |
